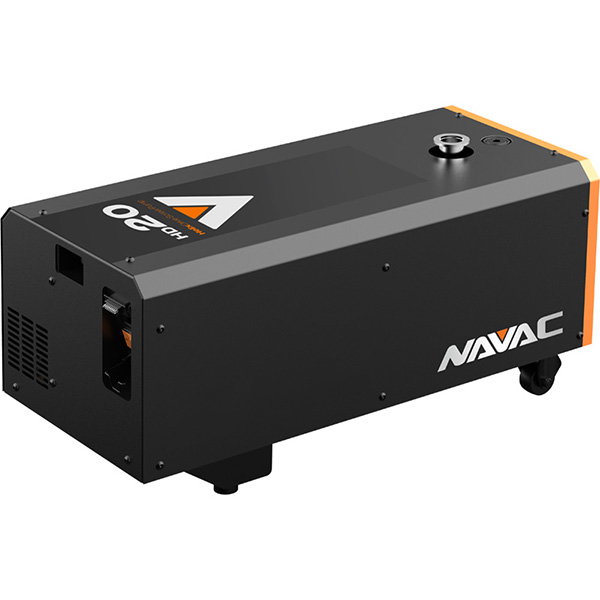

NAVAC HelixDrive Dry Screw Vacuum Pumps

HelixDrive is an ultra-compact, oil-free dry screw vacuum pump. Its unique coaxial design, with an integrated motor, enhances both efficiency and reliability. Its proprietary coating protects the pump from the most demanding industrial applications. Ideal for harsh applications where oil is not tolerated.

Features:

Compact Design: As one of the most innovative designs, this dry screw pump delivers fast pumping speed in an ultra-compact package.
Oil-Free Operation: Ideal for harsh applications where oil is not tolerated.
Temperature Management: Our temperature management system is optimized for the most effective cooling. Our larger pumps are water-cooled to enhance the performance of the pump, while our smaller pumps are air-cooled for easy operation.
Energy Efficiency: HD20 and HD40 have a permanent motor magnet which increase efficiency of the pump.

Applications:

Scientific Instruments
OEMs
R&D
System Integrators
Universities
Distillation
Vacuum Drying
Vacuum Packaging
Plasma Cleaning

Dimensional Drawings

NAVAC HelixDrive Dry Screw Vacuum Pumpsdrawing

Specifications Table

Pump Model	HD100	HD20	HD40	HD8	HD80
Pumping Speeds	50 (Hz) 59.0 CFM 100 m³/hr 60 (Hz) 59.0 CFM 100 m³/hr	50 (Hz) 12.0 CFM 20.0 m³/hr 60 (Hz) 12.0 CFM 20.0 m³/hr	50 (Hz) 19.0 CFM 32.0 m³/hr 60 (Hz) 19.0 CFM 32.0 m³/hr	50 (Hz) 4.71 CFM 8.00 m³/hr 60 (Hz) 4.71 CFM 8.00 m³/hr	50 (Hz) 47.0 CFM 80.0 m³/hr 60 (Hz) 47.0 CFM 80.0 m³/hr
Max Water Vapor Pumping Rate (with gas ballast)	800 g/hr	500 g/hr	500 g/hr	135 g/hr	800 g/hr
Ultimate Pressure	Total With Gas Ballast 3.00 x 10^-2 mbar 2.20 x 10^-2 Torr	Total With Gas Ballast 3.00 x 10^-2 mbar 2.20 x 10^-2 Torr	Total With Gas Ballast 3.00 x 10^-2 mbar 2.20 x 10^-2 Torr	Total With Gas Ballast 1.00 x 10^-2 mbar 7.50 x 10^-3 Torr	Total With Gas Ballast 3.00 x 10^-2 mbar 2.20 x 10^-2 Torr
Cooling Method(s)	Method Water	Method Forced Air	Method Forced Air	Method Forced Air	Method Water
Motor Power HP (kW)	4.02 ( 3.00 )	2.41 ( 1.80 )	2.41 ( 1.80 )	2.41 ( 1.80 )	4.02 ( 3.00 )
Inlet Flange	KF40	KF25	KF25	KF25	KF40
Exhaust Flange	KF40	KF25	KF25	KF16	KF40
Noise db(A)	60.0	60.0	60.0	58.0	60.0
Weight Lbs (kg)	451 ( 205 )	105 ( 48.0 )	105 ( 48.0 )	83.7 ( 38.0 )	451 ( 205 )
Dimensions in. (mm.) (W/D/H)	18.3 x 35.4 x 21.6 (465 x 900 x 549 )	11.8 x 23.6 x 12.6 (300 x 600 x 320 )	11.8 x 23.6 x 12.6 (300 x 600 x 320 )	11.8 x 20.5 x 12.6 (299 x 520 x 320 )	18.3 x 35.4 x 21.6 (465 x 900 x 549 )
Technology Type	Screw	Screw	Screw	Screw	Screw

X CLOSE

Note:

All HD pumps have PID functions and an analog output for SMART control.

Ordering Table

X CLOSE

Pump Model	Inlet Flange	Manual	Note	Description	Part Number	Price	In Stock	Add To Cart	Accessories
Pump Model	Inlet Flange	Manual	Note	Description	Part Number	Price	In Stock	Add To Cart	Accessories
HD100	KF40		1	—	HD100	P.O.R.
HD20	KF25		2	PUMP, NAVAC HELIXDRIVE HD20 SCREW PUMP, KF25 INLET FLANGE, 12CFM / 20M^3/HR, 220 VAC / 60 HZ 1 PHASE	HD20	P.O.R.
HD40	KF25		2	—	HD40	P.O.R.
HD80	KF40		1	—	HD80	P.O.R.

CloseX

Notes:

Water-Cooled Pump.

Air-Cooled Pump.
