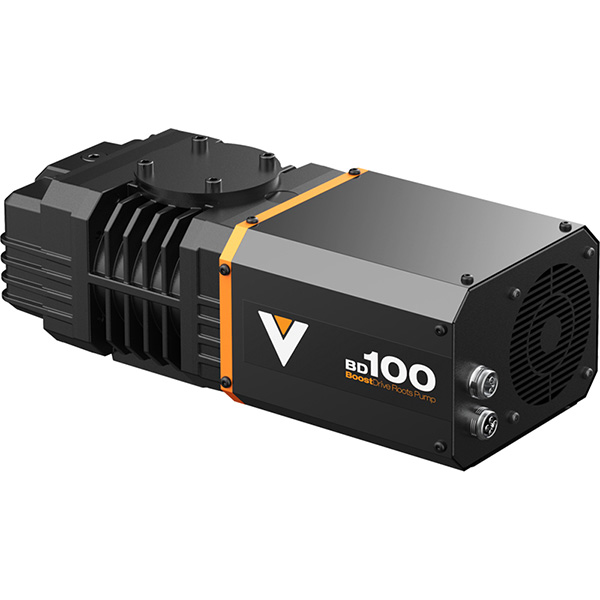

Representative Image

NAVAC BoostDrive Roots Blower

Features and Benefits

Dry pump: No oil to check, replace, and dispose of making this pump more environmentally friendly.
Performance: With pumping speed up to 600 m^3 /h, this roots-style blower will outperform pumps twice its size.
System Flexibility: Designed with flexibility in mind, this roots-style blower can be paired with a backing pump to optimize pumping efficiency.
Compact Design: As one of the most innovative designs, this dry roots-style blower delivers fast pumping speed in an ultra compact package.

Applications

Scientific Instruments
OEMs
R&D
System Integrators
Universities

Dimensional Drawings

Specifications Table

Pump Model	BD100	BD600
Pumping Speeds	50 (Hz) 94.2 CFM 160 m³/hr 60 (Hz) 112 CFM 190 m³/hr	50 (Hz) 353 CFM 600 m³/hr 60 (Hz) 424 CFM 721 m³/hr
Cooling Method(s)	Method Convection	Method Convection
Motor Power HP (kW)	0.50 ( 0.40 )	2.00 ( 1.50 )
Inlet Flange	VF50	DN63
Exhaust Flange	VF50	DN63
Noise db(A)	62.0	63.0
Weight Lbs (kg)	111 ( 50.7 )	479 ( 218 )
Dimensions in. (mm.) (W/D/H)	8.30 x 19.4 x 6.30 (210 x 492 x 160 )	11.2 x 30.7 x 8.50 (284 x 779 x 215 )
Lubrication Type	Dry	Dry
Technology Type	Blower	Blower

X CLOSE

Note:

Roots blowers are typically connected to a separate backing back as they add additional pumping speed and another compression stage. If you need help cross-referencing your current package to a NAVAC package or if you are starting from scratch, please reach out to pumps@lesker.com

Ordering Table

X CLOSE

Pump Model	Inlet Flange	Voltage & Phases	Manual	Description	Part Number	Price	In Stock	Add To Cart	Accessories
Pump Model	Inlet Flange	Voltage & Phases	Manual	Description	Part Number	Price	In Stock	Add To Cart	Accessories
BD100	VF50	200-230VAC/60Hz		PUMP, ROOTS BLOWER NAVAC BD100 VG50, 112CFM / 160M^3/HR, 200-230V/60HZ, THREE PHASE, AIR COOLING	BD100	P.O.R.
BD600	DN63	460V/60Hz		PUMP, ROOTS BLOWER NAVAC BD600 DN100, 424CFM / 600M^3/HR, 460V/60HZ, THREE PHASE, AIR COOLING	BD600	P.O.R.			—
